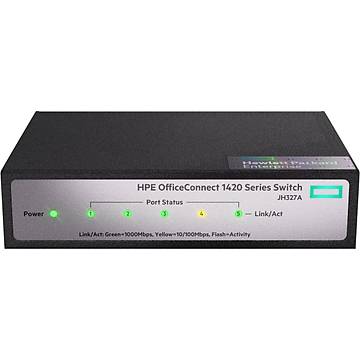

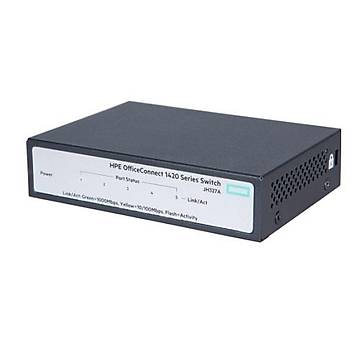

HP JH327A 1420-5G 5P GBIT SWITCH

JH327A Specifications

Type

HPE Officeconnect 1420 5G Switch

I/O ports and slots

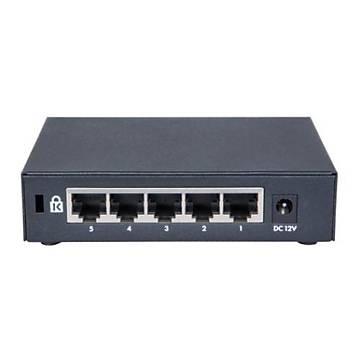

5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T)

Media type: Auto-MDIX

Duplex: 10BASE-T/100BASE-TX: half or full

1000BASE-T: full only

Memory and processor

Packet buffer size: 1Mb

Mounting and enclosure

Desktop (rear port)

100Mb latency

< 3 μs

1000Mb latency

< 2.6 μs

10 Gb/s Latency

N/A

Throughput

up to 7.4 Mp/s

Switching capacity

10Gb/s

MAC address table size

2048 entries

Reliability: MTBF (years)

N/A

Dimensions

2.69 x 11.48 x 8.08cm (1.06 x 4.52 x 3.18 in)

Weight

0.3 kg (0.66 lb)

Frequency

50/60 Hz

Maximum heat dissipation

N/A

Voltage

100 - 240 V ac (rated)

Current

N/A

Maximum power rating

3.0 W4

PoE power

N/A

Operating temperature

0°C to 40°C(32°F to 104°F)

Operating relative humidity

5% to 95%, non condensing

Non operating/Storage temperature

-40°C to 70°C (-40°F to 158°F)

Non operating/Storage relative humidity

5% to 95%, non condensing

Altitude

N/A

Acoustic

Fanless

Safety

UL 60950

IEC 60950-1

EN 60950-1

CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC Rules Part 15, Subpart B Class A

Generic

EN 55022 CISPR 22

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2

Flicker

IEC 61000-3-3
